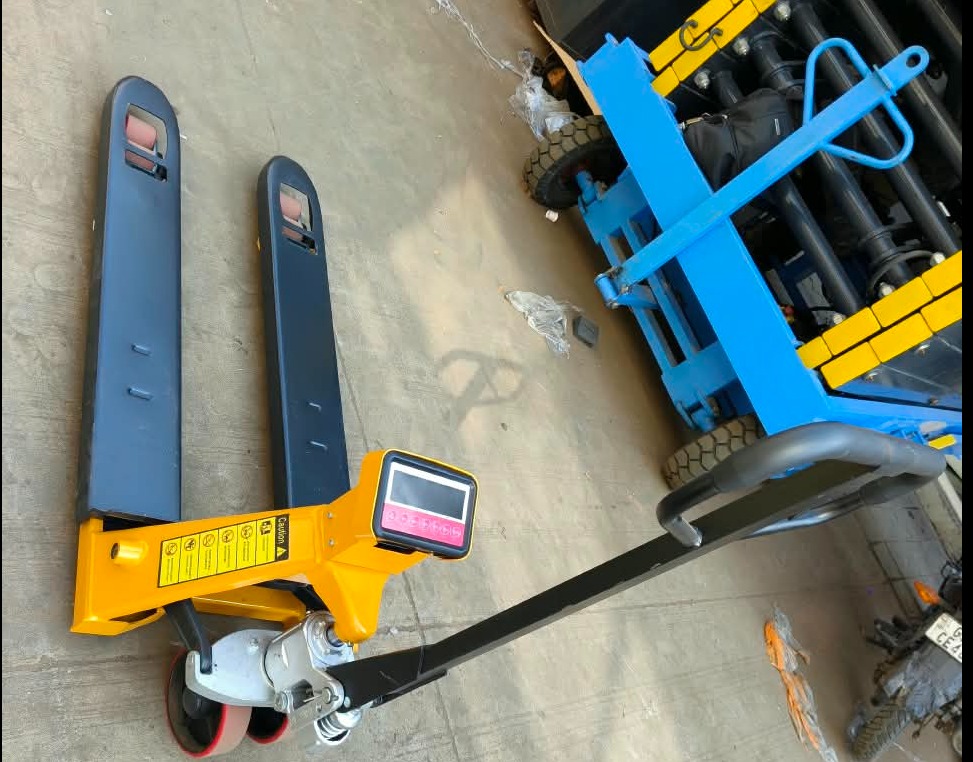

Helix Engineers is a manufacturer and supplier of industrial material handling equipment in Ahmedabad, Gujarat, India. Our Weighing Scale Hand Pallet Truck, Model HE-06, combines pallet handling with integrated weight measurement, helping operators lift, move, and weigh palletized goods using a single piece of equipment.
With a rated capacity of 2000 kg, this weighing scale pallet truck is designed for warehouses, factories, dispatch departments, logistics centres, and manufacturing units where weighing goods during material movement can help improve workflow efficiency and reduce unnecessary transfers to a separate weighing station.
- Technical Specifications – Model HE-06
- Specification Details
- Product Name Weighing Scale Hand Pallet Truck
- Model Number HE-06
- Manufacturer Helix Engineers
- Rated Capacity 2000 kg
- Lowered Fork Height 90 mm
- Maximum Raised Height 200 mm
- Fork Length 1150 mm
- Fork Width 550 mm
- Small Wheels Nylon, 80 × 70 mm, 4 nos.
- Large Wheels 180 × 50 mm, 2 nos.
- Wheel Bearings Double ball bearings
- Net Weight 73 kg
- Main Structure Heavy-duty MS C-section
- Lifting Mechanism Manual hydraulic pump
- Hydraulic Piston Rod EN-8 ground and hard-chrome-plated
- Hydraulic Cylinder Honed hydraulic cylinder
- Hydraulic Safety Built-in overload protection valve
- Handle MS pipe construction, designed for manoeuvrability
- Surface Finish Powder-coated structure
Please confirm the weighing indicator type, display features, weighing accuracy, scale resolution, and calibration/certification details with Helix Engineers before publishing these as product specifications.
Helix Engineers is an Ahmedabad-based material handling equipment manufacturer and supplier serving customers across PAN India and export markets.
We focus on practical material handling solutions that help businesses streamline goods movement, reduce unnecessary handling steps, and improve warehouse workflow efficiency. Our team can assist with product requirements and configuration details for your industrial application.
